<script language="JavaScript">
    // Start: 2022.02.02
    // Update: 2022.02.02

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;
    let imageData;

    let scaleX = 1.0;
    let scaleY = 1.0;
    let mx = 1.0;
    let my = 1.0;

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");

        imageData = bufCtx.createImageData(canvas.width, canvas.height);
    }

    function _draw(x1, y1, x2, y2) {
        const MAX_COUNT = 256;

        // X = -3.0 ~ 3.0
        // Y = -2.0 ~ 2.0
        // Z = X + Yi

        mx = x1 < -3.0 ? -3.0 : x1;
        my = y1 < -2.0 ? -2.0 : y1;

        x2 = x2 > 3.0 ? 3.0 : x2;
        y2 = y2 > 2.0 ? 2.0 : y2;

        let mw = x2 - x1;
        let mh = y2 - y1;

        console.log(x1, y1, x2, y2, " : ", mx, my, " : ", mw, mh);

        scaleX = mw / imageData.width;
        scaleY = mh / imageData.height;

        for (let i = 0; i < imageData.height; i++) {
            for (let j = 0; j < imageData.width; j++) {

                let c = 0;
                let x = mx + j * scaleX;
                let y = my + i * scaleY;
                let sx = x;
                let sy = y;

                for (c = 0; c < MAX_COUNT; c++) {
                    if (x**2 + y**2 > 4) {
                        break;
                    }
                    let nx = x**2 - y**2;
                    let ny = 2 * x * y;
                    x = nx + sx;
                    y = ny + sy;
                }

                let pos = 4 * (i * imageData.width + j);
                let color = 3 * c / MAX_COUNT;

                if (color < 1) {
                    imageData.data[pos+0]  = 255 * color;
                    imageData.data[pos+1] = color;
                    imageData.data[pos+2] = color;
                }
                else if (color < 2 ) {
                    imageData.data[pos+0] = 255;
                    imageData.data[pos+1] = color;
                    imageData.data[pos+2] = 0;
                } else {
                    imageData.data[pos+0] = 255;
                    imageData.data[pos+1] = 255;
                    imageData.data[pos+2] = color;
                }

                imageData.data[pos+3] = 255;
            }
        }

        bufCtx.putImageData(imageData, 0, 0);
        console.log("_OnDraw2()");
    }

    function OnDraw() {
        _draw(-3.0, -2.0, 3.0, 2.0);
        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);
    }

    function rectMouseMove(event) {
        // console.log("rectMouseMove");
        var currentPos = getMousePosition(event);
        cvs.beginPath();

        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);

        cvs.strokeStyle = pos.color;
        var box = {
            W: currentPos.X - pos.sx,
            H: currentPos.Y - pos.sy
        };

        cvs.strokeRect(pos.sx, pos.sy, box.W, box.H);

        cvs.stroke();
        cvs.closePath();
    }

    function rectMouseUp(event) {
        if (pos.isDraw) {
            console.log("rectMouseUp");
            var currentPos = getMousePosition(event);

            pos.ex = currentPos.X;
            pos.ey = currentPos.Y;

            if (pos.sx > pos.ex) {
                let t = pos.sx;
                pos.sx = pos.ex;
                pos.ex = t;
            }

            if (pos.sy > pos.ey) {
                let t = pos.sy;
                pos.sy = pos.ey;
                pos.ey = t;
            }

            let sx = mx + pos.sx * scaleX;
            let sy = my + pos.sy * scaleY;
            let ex = mx + pos.ex * scaleX;
            let ey = my + pos.ey * scaleY ;

            _draw(sx, sy, ex, ey);
            cvs.clearRect(0, 0, canvas.width, canvas.height);
            cvs.drawImage(bufCanvas, 0, 0);

            pos.isDraw = false;
        }
    }

    function rectMouseDown(event) {
        console.log("rectMouseDown");
        if (pos.isDraw) {
            return;
        }
        bufCtx.putImageData(imageData, 0, 0);
        //bufCtx.drawImage(canvas, 0, 0);
        pos.isDraw = true;
        var startPos = getMousePosition(event);
        pos.sx = startPos.X;
        pos.sy = startPos.Y;
    }

    function mouseListener(event) {
        switch (event.type) {
            case "mousedown":
                if (!pos.isDraw) {
                    pos.mouseDownAction(event);
                }
                break;
            case "mousemove":
                if (pos.isDraw) {
                    pos.mouseMoveAction(event);
                }
                break;
            case "mouseup":
            case "mouseout":
                if (pos.isDraw) {
                    pos.mouseUpAction(event);
                }
                break;
        }
    }

    function InitMouseEvent() {
        canvas.addEventListener("mousedown", mouseListener);
        canvas.addEventListener("mousemove", mouseListener);
        canvas.addEventListener("mouseout", mouseListener);
        canvas.addEventListener("mouseup", mouseListener);
    }

    function getMousePosition(event) {
        var x = event.pageX - canvas.offsetLeft;
        var y = event.pageY - canvas.offsetTop;
        return { X: x, Y: y };
    }

    var pos = {
        isDraw: false,
        mouseDownAction: rectMouseDown,
        mouseUpAction: rectMouseUp,
        mouseMoveAction: rectMouseMove,
        color: "rgb(255,211,25,255)",
        sx: 0,
        sy: 0,
        ex: 0,
        ey: 0
    }

    function onLoadPage() {
        InitCanvas();
        InitMouseEvent();
        OnDraw();
    }

    window.onload = onLoadPage();
</script>
</body>
</html>
Posted by chobocho

댓글을 달아 주세요

자바스크립트로 만델브로트 집합을 구현해 보았다.

만델브로트 집합



<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Mandelbrot</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>

<script language="JavaScript">
    // Start: 2022.02.02
    // Update: 2022.02.02

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");
    }

    function _draw() {
        let imageData = bufCtx.createImageData(canvas.width, canvas.height);
        const MAX_COUNT = 255;

        // X = -3.0 ~ 3.0
        // Y = -2.0 ~ 2.0
        // Z = X + Yi

        let mx = -3.0;
        let my = -2.0;
        let mw = 6.0;
        let mh = 4.0;
        let scaleX = mw / imageData.width;
        let scaleY = mh / imageData.height;

        for (let i = 0; i < imageData.height; i++) {
            for (let j = 0; j < imageData.width; j++) {

                let c = 0;
                let x = mx + j * scaleX;
                let y = my + i * scaleY;
                let sx = x;
                let sy = y;

                for (c = 0; c < MAX_COUNT; c++) {
                    if (x**2 + y**2 > 4) {
                        break;
                    }
                    let nx = x**2 - y**2;
                    let ny = 2 * x * y;
                    x = nx + sx;
                    y = ny + sy;
                }

                let pos = 4 * (i * imageData.width + j);

                imageData.data[pos+0] = c;
                imageData.data[pos+1] = c;
                imageData.data[pos+2] = c;
                imageData.data[pos+3] = 255;
            }
        }

        bufCtx.putImageData(imageData, 0, 0);
    }

    function OnDraw() {
        _draw();
        cvs.beginPath();
        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);
    }

    function onLoadPage() {
        InitCanvas();
        OnDraw();
    }

    window.onload = onLoadPage();
</script>
</body>
</html>
Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2022. 1. 20. 00:12
Sphere






소스는 아래와 같다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Sphere</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>
<script language="JavaScript">
    // Start: 2022.01.16
    // Update: 2022.01.18

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;
    let thetaX = 0;
    let thetaZ = 0;

    let maxSize = 0;
    let dimen = 12;
    let ox = 0;
    let oy = 0;
    let R1 = 1;  // 원의 반지름
    let R2 = 1;  // 회전 중심과의 거리
    let R3 = 1;
    let ZZ2 = 5000;

    let SIN = [];
    let COS = [];

    function InitValue() {
        for (let i = 0; i < 628; i++) {
            SIN[i] = Math.sin(i / 100);
            COS[i] = Math.cos(i / 100);
        }
    }

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        console.log(">Width:", width);
        console.log(">Heigth:", height);

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");

        maxSize = canvas.height < canvas.width ? canvas.height : canvas.width;

        ox = canvas.width / 2;
        oy = canvas.height / 2;
        R1 = maxSize/20;  // 원의 반지름
        R2 = maxSize/10;  // 회전 중심과의 거리
        R3 = maxSize/10;
    }

    function drawCircle(x, y, c, r) {
        if (c <= 0 || c >= 255){
            console.log(c);
        }

        bufCtx.beginPath();
        bufCtx.fillStyle = "rgb(" + c + "," + c + "," + c + ")";
        bufCtx.strokeStyle = "rgb(255, 255, 255)";
        bufCtx.arc(x, y, r, 0, Math.PI * 2);
        bufCtx.stroke();
        bufCtx.fill();
        bufCtx.closePath();
    }

    function _draw() {
        if (maxSize == 0) {
            return;
        }
        // 카메라와 스크린의 거리를 z'라 하고, 그 투영되는 상을 x',y'
        // z:x = z':x'
        // z:y = z':y'
        // x' = xz'/z, y' = yz'/z
        // z' = z1
        // x', y' = xz1/z, yz1/z
        // z의 최대거리 z2 = 1000이라 하면
        // x' <= (height/2 * 0.8) (화면 중앙 위치, 마진 0.1)
        // x 의 최대 값은 R1 + R2
        // x' = Z1(R1+R2)/z2 = height * 0.4
        // Z1 = Z2 * height * 0.4 / (R1+R2)

        let points = [];
        _drawDoughnut(points);
        _drawSphere(points);

        bufCtx.strokeStyle = "black";
        bufCtx.fillStyle = "black";
        bufCtx.fillRect(0, 0, canvas.width, canvas.height);
        points.forEach(e => drawCircle(e[0], e[1], e[2], 1));

        thetaX = (thetaX + 2) % 629;
        thetaZ = (thetaZ + 2) % 629;
    }


    function _drawDoughnut(points) {
        // 카메라와 스크린의 거리를 z'라 하고, 그 투영되는 상을 x',y'
        // z:x = z':x'
        // z:y = z':y'
        // x' = xz'/z, y' = yz'/z
        // z' = z1
        // x', y' = xz1/z, yz1/z
        // z의 최대거리 z2 = 5000이라 하면
        // x' <= (height/2 * 0.8) (화면 중앙 위치, 마진 0.1)
        // x 의 최대 값은 R1 + R2
        // x' = Z1(R1+R2)/z2 = height * 0.4
        // Z1 = Z2 * height * 0.4 / (R1+R2)
        let ZZ1 = maxSize * ZZ2 * 0.4 / (R1 + R2);

        for (let i = 0; i < 628; i += dimen) {
            let x1 = COS[i] * R1 + R2;
            let y1 = SIN[i] * R1;
            let nx1 = COS[i];
            let ny1 = SIN[i];

            for (let j = 0; j < 628; j += dimen) {
                // Y축 회전
                let x2 = x1 * COS[j];
                let y2 = y1;
                let z2 = x1 * SIN[j];

                let nx2 = nx1 * COS[j];
                let ny2 = ny1;
                let nz2 = nx1 * SIN[j];

                // X축 회전
                let x3 = x2;
                let y3 = y2 * COS[thetaX] - z2 * SIN[thetaX];
                let z3 = y2 * SIN[thetaX] + z2 * COS[thetaX];

                let nx3 = nx2;
                let ny3 = ny2 * COS[thetaX] - nz2 * SIN[thetaX];
                let nz3 = ny2 * SIN[thetaX] + nz2 * COS[thetaX];

                // Z축 회전
                let x4 = x3 * COS[thetaZ] - y3 * SIN[thetaZ];
                let y4 = x3 * SIN[thetaZ] + y3 * COS[thetaZ];
                let z4 = ZZ2 * 2 + z3;

                let nx4 = nx3 * COS[thetaZ] - ny3 * SIN[thetaZ];
                let ny4 = nx3 * SIN[thetaZ] + ny3 * COS[thetaZ];
                let nz4 = nz3;

                // 법선 벡터 (nx4, ny4, nz)와 광원의 백터 내적 계산
                // 광원 위치는 (0, 0, -1)
                let lx = 0;
                let ly = 0;
                let lz = -1;
                let light = nx4 * lx + ny4 * ly + nz4 * lz;

                if (light > 0) {
                    let color = Math.round(light * 255);

                    // x' = xz'/z, y' = yz'/z
                    let xp = Math.floor(x4 * ZZ1 / z4);
                    let yp = Math.floor(-y4 * ZZ1 / z4);

                    points.push([xp + ox, yp + oy, 255-color]);
                }
            }
        }
    }


    function _drawSphere(points) {
        // 카메라와 스크린의 거리를 z'라 하고, 그 투영되는 상을 x',y'
        // z:x = z':x'
        // z:y = z':y'
        // x' = xz'/z, y' = yz'/z
        // z' = z1
        // x', y' = xz1/z, yz1/z
        // z의 최대거리 z2 = 1000이라 하면
        // x' <= (height/2 * 0.8) (화면 중앙 위치, 마진 0.1)
        // x 의 최대 값은 R1 + R2
        // x' = Z1(R1+R2)/z2 = height * 0.4
        // Z1 = Z2 * height * 0.4 / (R1+R2)

        ZZ1 = maxSize * ZZ2 * 0.4 / (R1 + R2 + R3);

        for (let i = 0; i < 628; i += dimen) {
            let x1 = COS[i] * R1;
            let y1 = SIN[i] * R1;
            let nx1 = COS[i];
            let ny1 = SIN[i];

            for (let j = 0; j < 628; j += dimen) {
                // Y축 회전
                let x2 = x1 * COS[j];
                let y2 = y1;
                let z2 = x1 * SIN[j];

                let nx2 = nx1 * COS[j];
                let ny2 = ny1;
                let nz2 = nx1 * SIN[j];

                // Z축 회전
                let x3 = x2 * COS[thetaX] - y2 * SIN[thetaX];
                let y3 = x2 * SIN[thetaX] + y2 * COS[thetaX];
                let z3 = z2;

                let nx3 = nx2 * COS[thetaX] - ny2 * SIN[thetaX];
                let ny3 = nx2 * SIN[thetaX] + ny2 * COS[thetaX];
                let nz3 = nz2;

                // X축 회전
                let x4 = x3 + R2 + R3;
                let y4 = y3 * COS[thetaX] - z3 * SIN[thetaX];
                let z4 = y3 * SIN[thetaX] + z3 * COS[thetaX];

                let nx4 = nx3;
                let ny4 = ny3 * COS[thetaX] - nz3 * SIN[thetaX];
                let nz4 = ny3 * SIN[thetaX] + nz3 * COS[thetaX];

                // Z축 시계 방향 회전
                let x5 = x4 * COS[thetaZ] + y4 * SIN[thetaZ];
                let y5 = -x4 * SIN[thetaZ] + y4 * COS[thetaZ];
                let z5 = ZZ2 + z4;

                let nx5 = nx4 * COS[thetaZ] + ny4 * SIN[thetaZ];
                let ny5 = -nx4 * SIN[thetaZ] + ny4 * COS[thetaZ];
                let nz5 = nz4;

                // 법선 벡터 (nx4, ny4, nz)와 광원의 백터 내적 계산
                // 광원 위치는 (0, 0, -1)
                let lx = 0;
                let ly = 0;
                let lz = -1;
                let light = nx5 * lx + ny5 * ly + nz5 * lz;

                if (light > 0) {
                    let color = Math.round(light * 255);

                    // x' = xz'/z, y' = yz'/z
                    let xp = Math.floor(x5 * ZZ1 / z5);
                    let yp = Math.floor(-y5 * ZZ1 / z5);

                    points.push([xp + ox, yp + oy, 255-color]);
                }
            }
        }
    }

    function OnDraw() {
        _draw();

        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);
    }


    function onLoadPage() {
        InitValue();
        InitCanvas();
        OnDraw();
        setInterval(OnDraw, 50);
    }

    window.onload = onLoadPage();
</script>
</body>
</html>
Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2022. 1. 19. 10:25

유튜브에서본 회전 하는 3D 도넛을 구현해 보았다.

3D doughnut

코드는 아래와 같다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>3D doughnut</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>
<script language="JavaScript">
    // Start: 2022.01.16
    // Update: 2022.01.18

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;
    let thetaX = 127;
    let thetaZ = 0;

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");
    }

    function drawCircle(x, y, c, r) {
        if (c <= 0 || c >= 255){
            console.log(c);
        }

        bufCtx.beginPath();
        bufCtx.fillStyle = "rgb(" + c + "," + c + "," + c + ")";
        bufCtx.strokeStyle = "rgb(255, 255, 255)";
        bufCtx.arc(x, y, r, 0, Math.PI * 2);
        bufCtx.stroke();
        bufCtx.fill();
        bufCtx.closePath();
    }

    function _draw() {
        let maxSize = canvas.height < canvas.width ? canvas.height : canvas.width;
        let dimen = 8;
        let ox = canvas.width / 2;
        let oy = canvas.height / 2;

        let R1 = maxSize/20;  // 원의 반지름
        let R2 = maxSize/10;  // Y축으로 회전하기 위한 반경

        // 카메라와 스크린의 거리를 z'라 하고, 그 투영되는 상을 x',y'
        // z:x = z':x'
        // z:y = z':y'
        // x' = xz'/z, y' = yz'/z
        // z' = z1
        // x', y' = xz1/z, yz1/z
        // z의 최대거리 z2 = 5000이라 하면
        // x' <= (height/2 * 0.8) (화면 중앙 위치, 마진 0.1)
        // x 의 최대 값은 R1 + R2
        // x' = Z1(R1+R2)/z2 = height * 0.4
        // Z1 = Z2 * height * 0.4 / (R1+R2)

        let ZZ2 = 5000;
        let ZZ1 = maxSize * ZZ2 * 0.4 / (R1 + R2);

        let points = [];

        for (let i = 0; i < 628; i += dimen) {
            let x1 = Math.cos(i/100) * R1 + R2;
            let y1 = Math.sin(i/100) * R1;
            let nx1 = Math.cos(i/100);
            let ny1 = Math.sin(i/100);

            for (let j = 0; j < 628; j += dimen) {
                // Y축 회전
                let x2 = x1 * Math.cos(j/100);
                let y2 = y1;
                let z2 = x1 * Math.sin(j/100);

                let nx2 = nx1 * Math.cos(j/100);
                let ny2 = ny1;
                let nz2 = nx1 * Math.sin(j/100);

                // X축 회전
                let x3 = x2;
                let y3 = y2 * Math.cos(thetaX/100) - z2 * Math.sin(thetaX/100);
                let z3 = y2 * Math.sin(thetaX/100) + z2 * Math.cos(thetaX/100);

                let nx3 = nx2;
                let ny3 = ny2 * Math.cos(thetaX/100) - nz2 * Math.sin(thetaX/100);
                let nz3 = ny2 * Math.sin(thetaX/100) + nz2 * Math.cos(thetaX/100);

                // Z축 회전
                let x4 = x3 * Math.cos(thetaZ/100) - y3 * Math.sin(thetaZ/100);
                let y4 = x3 * Math.sin(thetaZ/100) + y3 * Math.cos(thetaZ/100);
                let z4 = ZZ2 + z3;

                let nx4 = nx3 * Math.cos(thetaZ/100) - ny3 * Math.sin(thetaZ/100);
                let ny4 = nx3 * Math.sin(thetaZ/100) + ny3 * Math.cos(thetaZ/100);
                let nz4 = nz3;

                // 법선 벡터 (nx4, ny4, nz)와 광원의 백터 내적 계산
                // 광원 위치는 (0, 0, -1)
                let lx = 0;
                let ly = 0;
                let lz = -1;
                let light = nx4 * lx + ny4 * ly + nz4 * lz;

                if (light > 0) {
                    let color = Math.round(light * 255);

                    // x' = xz'/z, y' = yz'/z
                    let xp = Math.floor(x4 * ZZ1 / z4);
                    let yp = Math.floor(-y4 * ZZ1 / z4);

                    points.push([xp + ox, yp + oy, 255-color]);
                }
            }
        }

        bufCtx.beginPath();
        bufCtx.strokeStyle = "black";
        bufCtx.fillStyle = "black";
        bufCtx.fill();

        bufCtx.fillRect(0, 0, canvas.width, canvas.height);
        bufCtx.closePath();
        bufCtx.stroke();

        points.forEach(e => drawCircle(e[0], e[1], e[2], 1));

        thetaX = (thetaX + 2) % 629;
        thetaZ = (thetaZ + 2) % 629;
    }

    function OnDraw() {
        _draw();

        cvs.beginPath();
        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);

        console.log(">OnDraw()");
    }


    function onLoadPage() {
        InitCanvas();
        OnDraw();
        setInterval(OnDraw, 50);
    }

    window.onload = onLoadPage();
</script>
</body>
</html>





Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2022. 1. 19. 01:08

유튜브에서 회전하는 도넛 영상을 보고, 회전하는 구를 그려 보았다.

Sphere

1. 난해하게 만든 전체 소스는 아래와 같다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Sphere</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>
<script language="JavaScript">
    // Start: 2022.01.18
    // Update: 2022.01.19

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;
    let thetaX = 0;
    let thetaZ = 0;

    let SIN = [];
    let COS = [];

    function InitValue() {
        for (let i = 0; i < 628; i++) {
            SIN[i] = Math.sin(i / 100);
            COS[i] = Math.cos(i / 100);
        }
    }

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        console.log(">Width:", width);
        console.log(">Heigth:", height);

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");
    }

    function drawCircle(x, y, c, r) {
        bufCtx.beginPath();
        bufCtx.fillStyle = "rgb(" + c + "," + c + "," + c + ")";
        bufCtx.strokeStyle = "rgb(255, 255, 255)";
        bufCtx.arc(x, y, r, 0, Math.PI * 2);
        bufCtx.stroke();
        bufCtx.fill();
        bufCtx.closePath();
    }

    function _draw() {
        let maxSize = canvas.height < canvas.width ? canvas.height : canvas.width;
        let dimen = 8;
        let ox = canvas.width / 2;
        let oy = canvas.height / 2;
        let R1 = maxSize/20;
        let ZZ1 = maxSize * 1000 * 0.4 / R1;

        let points = [];

        for (let i = 0; i < 628; i += dimen) {
            let a = COS[i];
            let b = SIN[i];

            for (let j = 0; j < 628; j += dimen) {
                let c = COS[j];
                let d = SIN[j];
                let e = COS[thetaX];
                let f = SIN[thetaX];
                let g = COS[thetaZ];
                let h = SIN[thetaZ];

                let k = b * R1 * e - a * R1 * d * f;
                let x4 = a * R1 * c * g - k * h;
                let y4 = a * R1 * c * h + k * g;
                let z4 = ZZ1 / (1000 + b * R1 * f + a * R1 * d * e);
                let light = (b * f + a * d * e);

                if (light > 0) {
                    let color = Math.round(light * 255);
                    let xp = Math.floor(x4 * z4 + ox);
                    let yp = Math.floor(-y4 * z4 + oy);
                    points.push([xp, yp, 255-color]);
                }
            }
        }

        bufCtx.strokeStyle = "black";
        bufCtx.fillStyle = "black";
        bufCtx.fillRect(0, 0, canvas.width, canvas.height);
        points.forEach(e => drawCircle(e[0], e[1], e[2], 1));

        thetaX = (thetaX + 2) % 629;
        thetaZ = (thetaZ + 2) % 629;
    }

    function OnDraw() {
        let startTime = new Date();
        _draw();

        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);

        console.log("Elapsed time: " + (new Date() - startTime));
    }


    function onLoadPage() {
        InitValue();
        InitCanvas();
        OnDraw();
        setInterval(OnDraw, 50);
    }

    window.onload = onLoadPage();
</script>
</body>
</html>






1. HTML로 구를 그리기 위한 기본적인 뼈대를 작성한다.

아래 코드에서 _drawSphere()를 채워 나갑니다.

하기 HTML 코드는 좋은 예제가 아닙니다. HTML 관련은 인터넷에 있는 좋은 코드를 참고 하시기 바랍니다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Sphere</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>
<script language="JavaScript">
    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        console.log(">Width:", width);
        console.log(">Heigth:", height);

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");
    }

    function _drawSphere() {

    }

    function OnDraw() {
        let startTime = new Date();

        bufCtx.strokeStyle = "black";
        bufCtx.fillStyle = "black";
        bufCtx.fillRect(0, 0, canvas.width, canvas.height);

        _drawSphere();

        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);
        console.log("Elapsed time: " + (new Date() - startTime));
    }


    function onLoadPage() {
        InitCanvas();
        OnDraw();
        setInterval(OnDraw, 50);
    }

    window.onload = onLoadPage();
</script>
</body>
</html>



2. 원 그리기

원점을 기준으로 지름 r인 원은 아래 수식으로 표현 할 수 있습니다.

이때, x, y는 아래와 같이 구 할 수 있습니다.


원래 작성한 코드는 아래와 같다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Sphere</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>
<script language="JavaScript">
    // Start: 2022.01.16
    // Update: 2022.01.18

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;
    let thetaX = 0;
    let thetaZ = 0;

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        console.log(">Width:", width);
        console.log(">Heigth:", height);

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");
    }

    function drawCircle(x, y, c, r) {

        bufCtx.beginPath();
        bufCtx.fillStyle = "rgb(" + c + "," + c + "," + c + ")";
        bufCtx.strokeStyle = "rgb(255, 255, 255)";
        bufCtx.arc(x, y, r, 0, Math.PI * 2);
        bufCtx.stroke();
        bufCtx.fill();
        bufCtx.closePath();
    }

    function _draw() {
        let maxSize = canvas.height < canvas.width ? canvas.height : canvas.width;
        let dimen = 8;
        let ox = canvas.width / 2;
        let oy = canvas.height / 2;
        let R1 = maxSize/20;  // 원의 반지름

        // 카메라와 스크린의 거리를 z'라 하고, 그 투영되는 상을 x',y'
        // z:x = z':x'
        // z:y = z':y'
        // x' = xz'/z, y' = yz'/z
        // z' = z1
        // x', y' = xz1/z, yz1/z
        // z의 최대거리 z2 = 1000이라 하면
        // x' <= (height/2 * 0.8) (화면 중앙 위치, 마진 0.1)
        // x 의 최대 값은 R1 + R2
        // x' = Z1(R1+R2)/z2 = height * 0.4
        // Z1 = Z2 * height * 0.4 / (R1+R2)

        let ZZ2 = 1000;
        let ZZ1 = maxSize * ZZ2 * 0.4 / R1;

        let points = [];

        for (let i = 0; i < 628; i += dimen) {
            let x1 = Math.cos(i/100) * R1;
            let y1 = Math.sin(i/100) * R1;
            let nx1 = Math.cos(i/100);
            let ny1 = Math.sin(i/100);

            for (let j = 0; j < 628; j += dimen) {
                // Y축 회전
                let x2 = x1 * Math.cos(j/100);
                let y2 = y1;
                let z2 = x1 * Math.sin(j/100);

                let nx2 = nx1 * Math.cos(j/100);
                let ny2 = ny1;
                let nz2 = nx1 * Math.sin(j/100);

                // X축 회전
                let x3 = x2;
                let y3 = y2 * Math.cos(thetaX/100) - z2 * Math.sin(thetaX/100);
                let z3 = y2 * Math.sin(thetaX/100) + z2 * Math.cos(thetaX/100);

                let nx3 = nx2;
                let ny3 = ny2 * Math.cos(thetaX/100) - nz2 * Math.sin(thetaX/100);
                let nz3 = ny2 * Math.sin(thetaX/100) + nz2 * Math.cos(thetaX/100);

                // Z축 회전
                let x4 = x3 * Math.cos(thetaZ/100) - y3 * Math.sin(thetaZ/100);
                let y4 = x3 * Math.sin(thetaZ/100) + y3 * Math.cos(thetaZ/100);
                let z4 = ZZ2 + z3;

                let nx4 = nx3 * Math.cos(thetaZ/100) - ny3 * Math.sin(thetaZ/100);
                let ny4 = nx3 * Math.sin(thetaZ/100) + ny3 * Math.cos(thetaZ/100);
                let nz4 = nz3;

                // 법선 벡터 (nx4, ny4, nz)와 광원의 백터 내적 계산
                // 광원 위치는 (0, 0, -1)
                let lx = 0;
                let ly = 0;
                let lz = -1;
                let light = nx4 * lx + ny4 * ly + nz4 * lz;

                if (light > 0) {
                    let color = Math.round(light * 255);

                    // x' = xz'/z, y' = yz'/z
                    let xp = Math.floor(x4 * ZZ1 / z4);
                    let yp = Math.floor(-y4 * ZZ1 / z4);

                    points.push([xp + ox, yp + oy, 255-color]);
                }
            }
        }

        bufCtx.strokeStyle = "black";
        bufCtx.fillStyle = "black";
        bufCtx.fillRect(0, 0, canvas.width, canvas.height);
        points.forEach(e => drawCircle(e[0], e[1], e[2], 1));

        thetaX = (thetaX + 2) % 629;
        thetaZ = (thetaZ + 2) % 629;
    }

    function OnDraw() {
        _draw();

        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);
    }


    function onLoadPage() {
        InitCanvas();
        OnDraw();
        setInterval(OnDraw, 50);
    }

    window.onload = onLoadPage();
</script>
</body>
</html>
Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2021. 10. 16. 13:54
Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2021. 2. 13. 15:38

Youtube에서 3D 프로그래밍 관련 괜찮은 자료가 있어서 정리를 해 둡니다.

"高校数学とJavaScriptだけ。FPSの作り方 #1【ゲームプログラミング】【ゲーム開発】"

라는 제목의 강의 입니다. 강의 내용을 압축해 두어서, 생략이 많네요;;;

youtu.be/Mtf4rz9UEQo



youtu.be/aj1oBvY_LWw



youtu.be/34uAtYSirWk



Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2020. 9. 23. 23:04

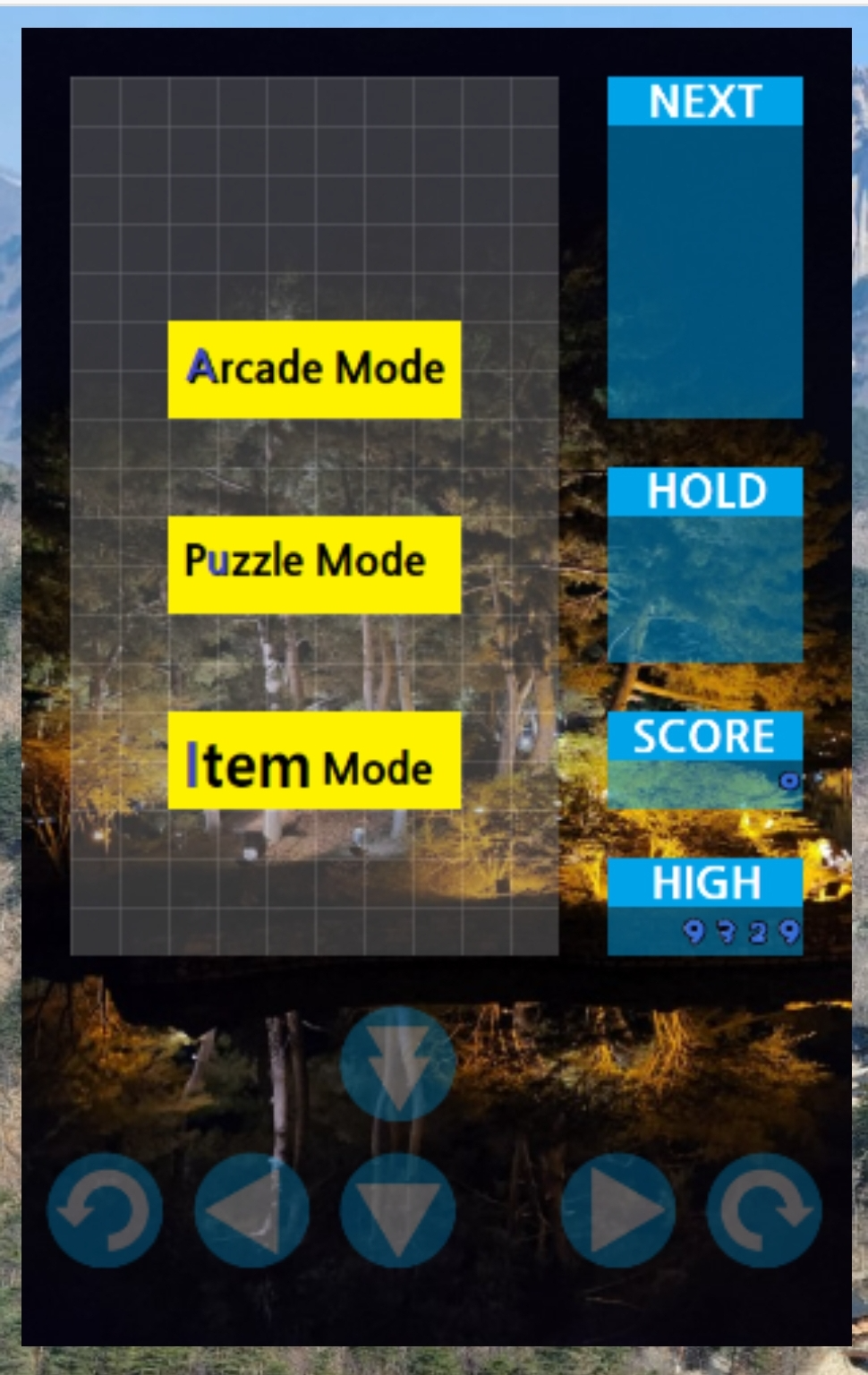

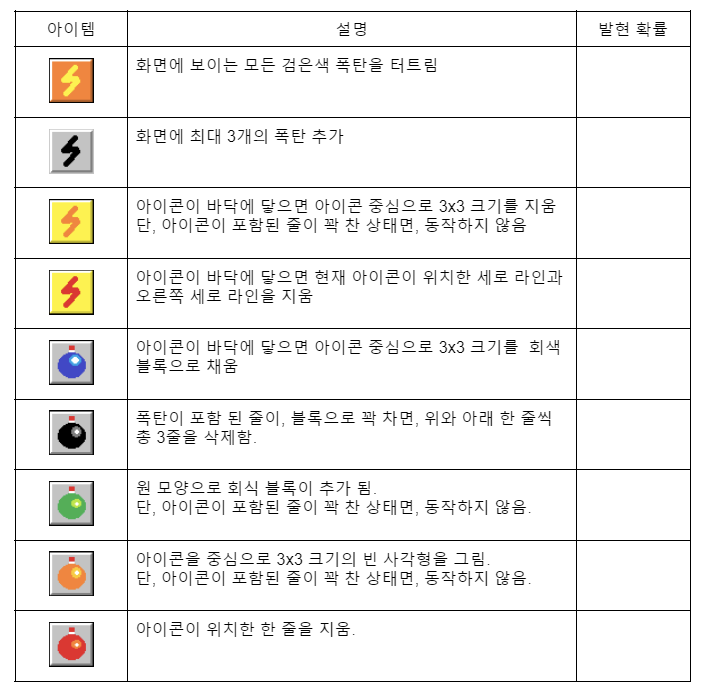

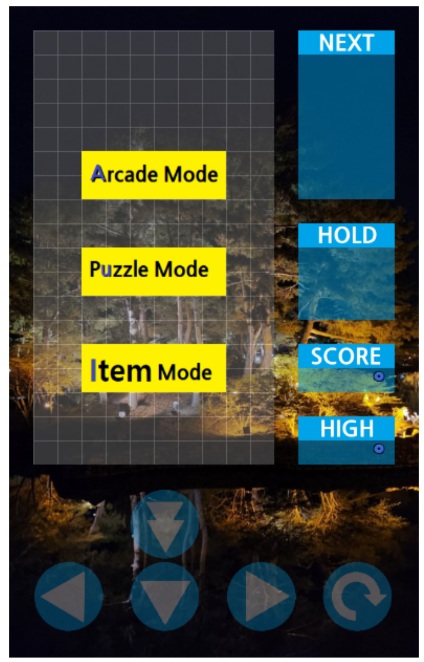

자바스크립트로 테트리스를 만들어 보았습니다.

1) Play 해보기 (크롬만 지원합니다.)

사용키 : 방향키, 스페이스 (블록 아래로 내리기), Ctrl (Hold), S (Start / Resume), P (Pause)

www.chobocho.com/game/tetris/tetris.html



Chobocho's Tetris



www.chobocho.com

2) Source code

github.com/chobocho/JsTetris/tree/master/src/app/src/main/assets



chobocho/JsTetris

Javascript tetris. Contribute to chobocho/JsTetris development by creating an account on GitHub.

github.com

3) UML

Javascript Tetris UML

Posted by chobocho

댓글을 달아 주세요

Coding/JavsScript 삽질기2020. 9. 10. 01:40

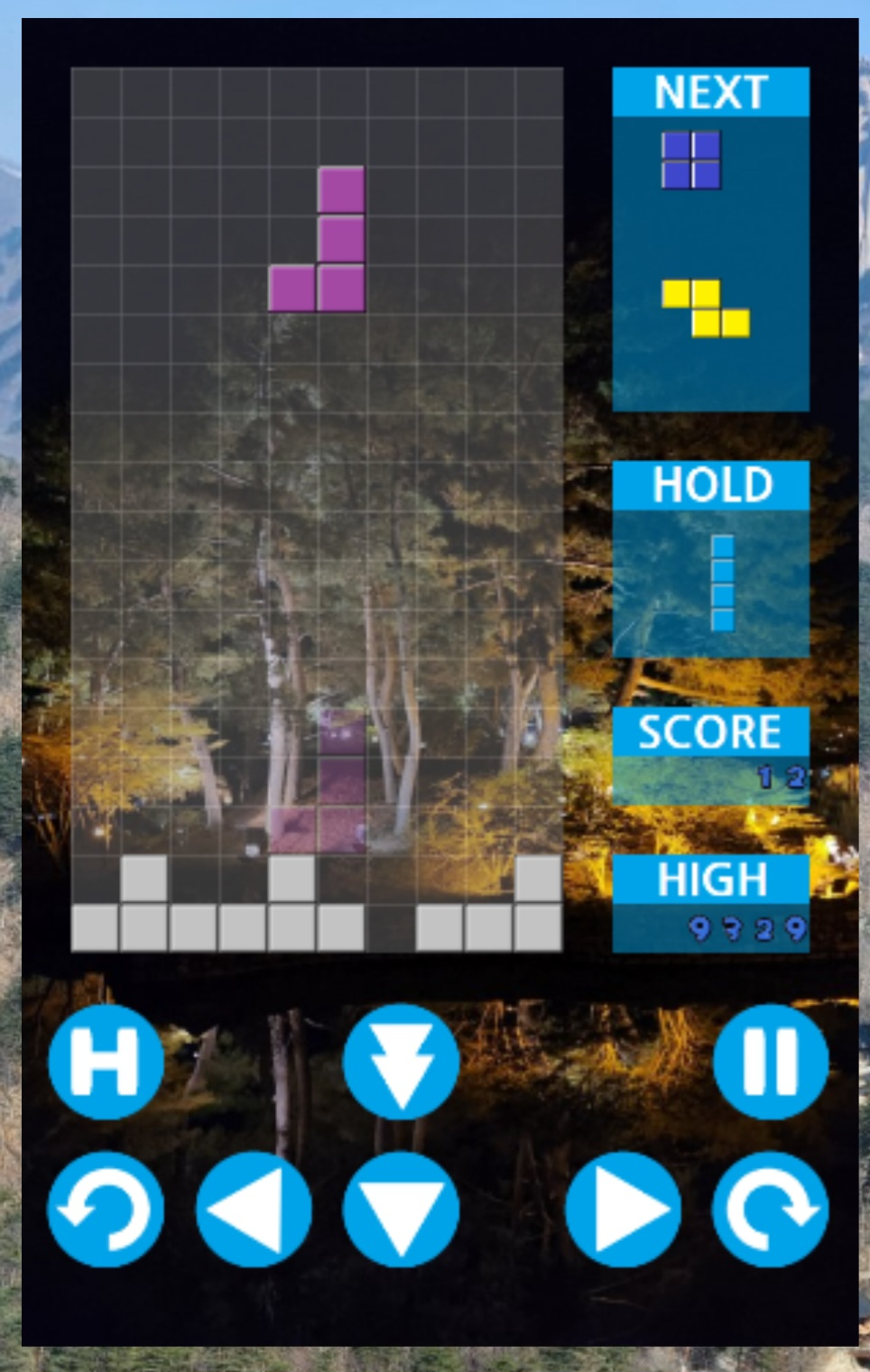

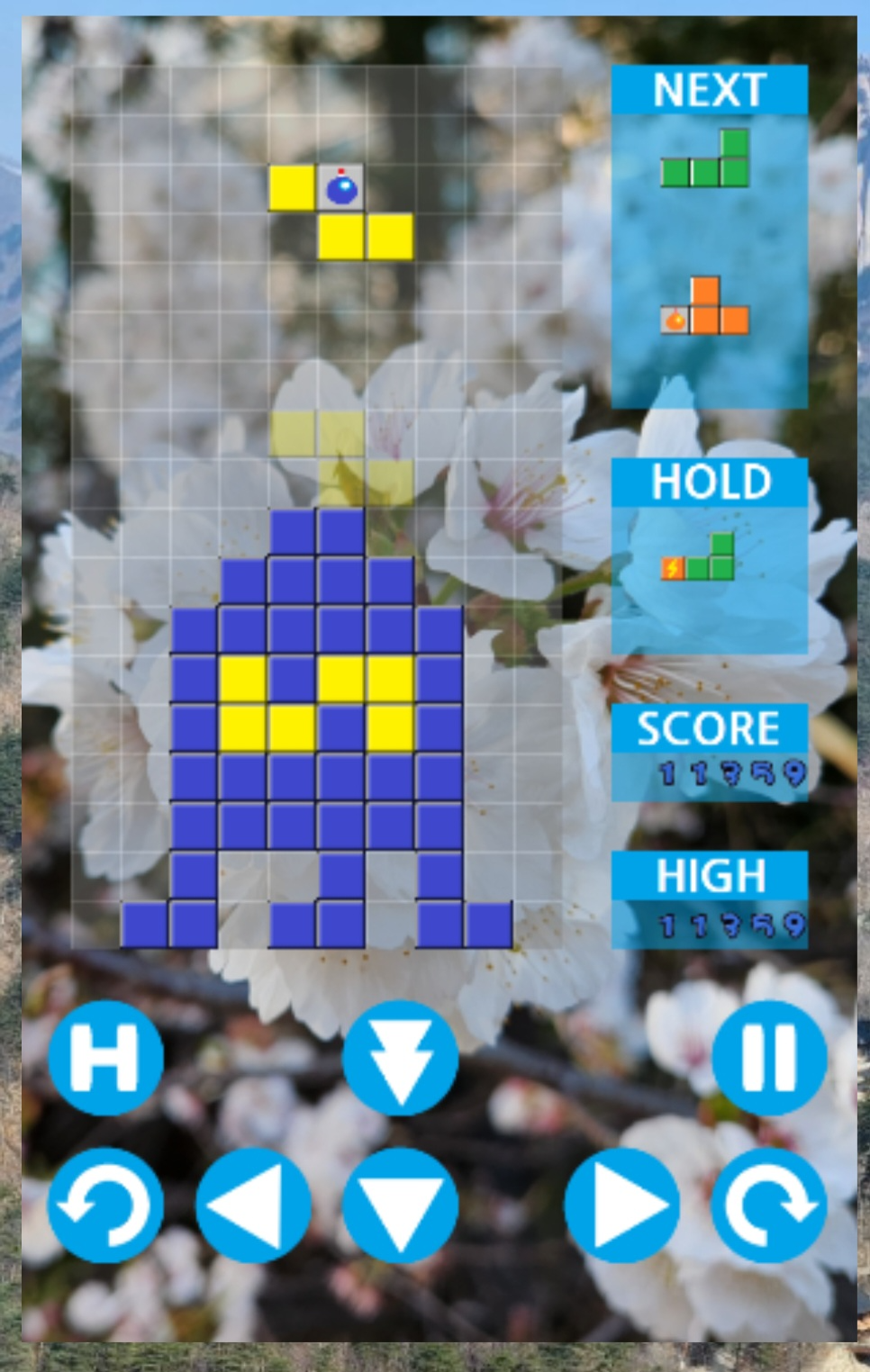

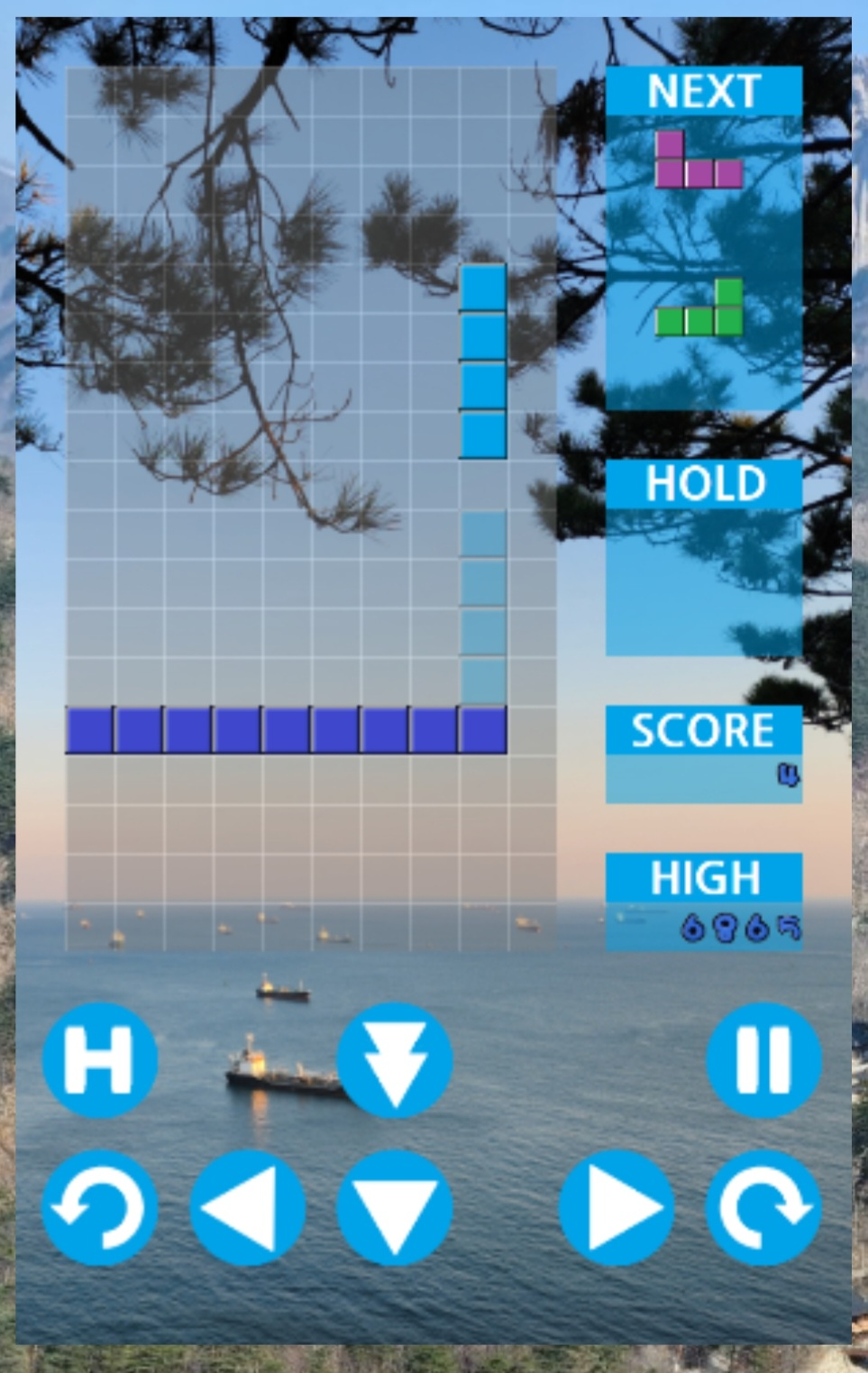

자바스크립트를 이용하여 테트리스를 만들고, 이를 Android의 WebView를 이용하여 Android 앱으로 만들어 보았다.

소스코드: github.com/chobocho/JsTetris



chobocho/JsTetris

Javascript tetris. Contribute to chobocho/JsTetris development by creating an account on GitHub.

github.com

다운로드: play.google.com/store/apps/details?id=com.chobocho.jstetris



Classic Block Game V2 - Google Play 앱

Simple block game

play.google.com

웹 브라우저로 해보기 (크롬에서만 동작 확인을 했습니다)

www.chobocho.com/game/tetris/tetris.html



Chobocho's Tetris



www.chobocho.com

* 사용키 : 방향키, 스페이스 (블록 아래로 내리기), Ctrl (Hold), S (Start / Resume), P (Pause)



Posted by chobocho

댓글을 달아 주세요

  1. 재미있는 글 매우 잘 배우고 가용~

    2020.11.26 03:06 [ ADDR : EDIT/ DEL : REPLY ]

Coding/JavsScript 삽질기2020. 1. 13. 01:04

소개 https://chobocho.tistory.com/2461396
실행하기 http://www.chobocho.com/javascript/painter.html
전체 소스코드 https://github.com/chobocho/painter



chobocho/painter

Painter written html5. Contribute to chobocho/painter development by creating an account on GitHub.

github.com

9.1 Undo/Redo 기능 구현

Undo/Redo 기능을 구현하기 위해서는 모든 사용자의 동작을 저장해야 합니다

그럼 사용자의 동작을 저장하기 위해서, 선을 그리거나, 원을 그리는 동작을

아래와 같이 커맨드로 정의 해야 합니다.

마우스로 그린 그림

color red
color lightblue
rect 8 6 713 356 F
color white
ellipse 190 116 93 44 F
ellipse 456 115 87 42 F
color black
ellipse 226 116 31 31 F
ellipse 489 113 29 30 F
ellipse 420 277 0 0 F

그리고 그 커맨드를 stack에 저장합니다.



Posted by chobocho

댓글을 달아 주세요

  1. 가루

    안녕하세요?
    먼저 좋은 게시물을 작성해주셔서 감사합니다.

    웹상에서 로컬에 있는 이미지를 불러와서
    이미지에 연필/선/사각형/원형을 이용하여 편집(덧칠)한 뒤 다운로드 하며
    그 과정에서 좌표를 입력하는 기능을 직접 만드는 도중
    초보초님의 블로그를 찾게 되었습니다.

    MIT라이센스라고 명시되어있으나 그냥 날름 가져다 쓰기엔 뭔가 아닌것 같아서
    감사하다는 말씀을 드리려고 댓글을 작성했습니다.

    감사합니다(__)

    2020.10.26 06:21 [ ADDR : EDIT/ DEL : REPLY ]
  2. 방문해 주셔서 감사합니다.
    제 글이 도움이되었다니 다행이네요. 즐거운 하루되세요.

    2020.10.26 08:10 신고 [ ADDR : EDIT/ DEL : REPLY ]
