2022.02.02 만델브로트 집합 그리기

Coding/JavsScript 삽질기2022. 2. 2. 22:41

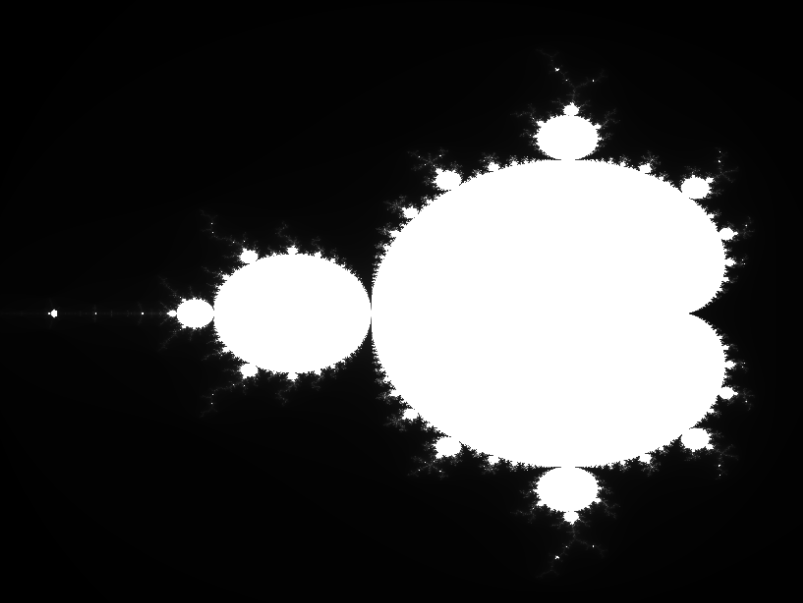

만델브로트 집합 그리기

자바스크립트로 만델브로트 집합을 구현해 보았다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Mandelbrot</title>
    <meta name='viewport' content='width=device-width, initial-scale=1.0'>
    <style>
        canvas {
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<div align='center'>
    <canvas id="canvas"></canvas>
</div>

<script language="JavaScript">
    // Start: 2022.02.02
    // Update: 2022.02.02

    let cvs;
    let canvas;
    let bufCanvas;
    let bufCtx;

    function InitCanvas() {
        height = window.innerHeight;
        width = window.innerWidth;

        canvas = document.getElementById("canvas");
        canvas.width = width;
        canvas.height = height;
        cvs = canvas.getContext("2d");

        bufCanvas = document.createElement("canvas");
        bufCanvas.width = canvas.width;
        bufCanvas.height = canvas.height;
        bufCtx = bufCanvas.getContext("2d");
    }

    function _draw() {
        let imageData = bufCtx.createImageData(canvas.width, canvas.height);
        const MAX_COUNT = 255;

        // X = -3.0 ~ 3.0
        // Y = -2.0 ~ 2.0
        // Z = X + Yi

        let mx = -3.0;
        let my = -2.0;
        let mw = 6.0;
        let mh = 4.0;
        let scaleX = mw / imageData.width;
        let scaleY = mh / imageData.height;

        for (let i = 0; i < imageData.height; i++) {
            for (let j = 0; j < imageData.width; j++) {

                let c = 0;
                let x = mx + j * scaleX;
                let y = my + i * scaleY;
                let sx = x;
                let sy = y;

                for (c = 0; c < MAX_COUNT; c++) {
                    if (x**2 + y**2 > 4) {
                        break;
                    }
                    let nx = x**2 - y**2;
                    let ny = 2 * x * y;
                    x = nx + sx;
                    y = ny + sy;
                }

                let pos = 4 * (i * imageData.width + j);

                imageData.data[pos+0] = c;
                imageData.data[pos+1] = c;
                imageData.data[pos+2] = c;
                imageData.data[pos+3] = 255;
            }
        }

        bufCtx.putImageData(imageData, 0, 0);
    }

    function OnDraw() {
        _draw();
        cvs.beginPath();
        cvs.clearRect(0, 0, canvas.width, canvas.height);
        cvs.drawImage(bufCanvas, 0, 0);
    }

    function onLoadPage() {
        InitCanvas();
        OnDraw();
    }

    window.onload = onLoadPage();
</script>
</body>
</html>
